Product Details
Place of Origin: China
Brand Name: Virette
Model Number: 120
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: 8-10USD
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs per month
Name: |
Pump |
Material: |
Aluminum |
OEM: |
Yes |
Working Pressure: |
≤0.3 Mpa |
Flow Rate: |
90-120L/m |
Motor Power: |
0.75KW |
Motor Speed: |
960rpm |
Noise: |
≤72dB |
Suction Pipe Section: |
1-1/2" |
Name: |
Pump |
Material: |
Aluminum |
OEM: |
Yes |
Working Pressure: |
≤0.3 Mpa |
Flow Rate: |
90-120L/m |
Motor Power: |
0.75KW |
Motor Speed: |
960rpm |
Noise: |
≤72dB |
Suction Pipe Section: |
1-1/2" |

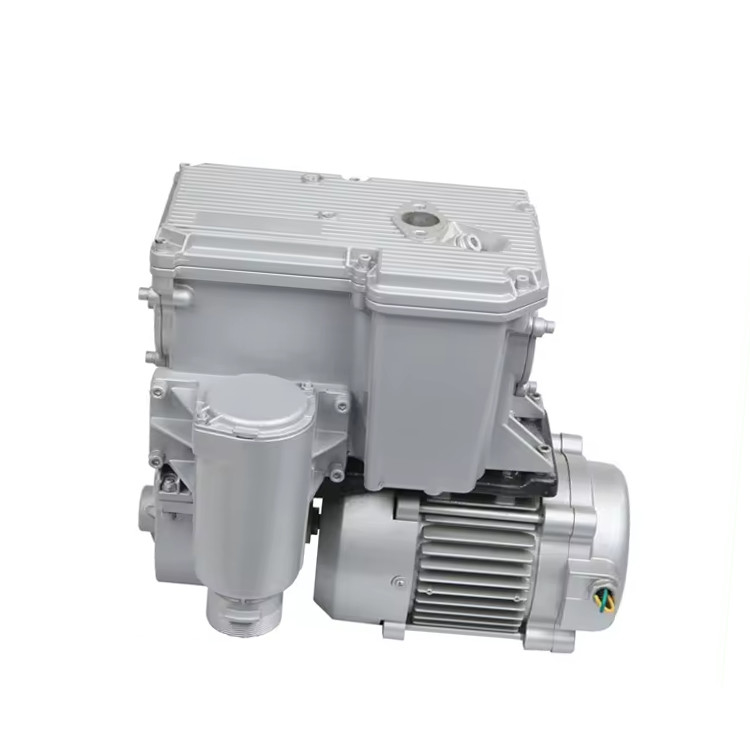

The pump is composed of an aluminum body to which the filter housing, the pump and the electronic motor are connected.
* Non-return valve integrated in the filter.
* Fuel filter consisting of a filtering cartridge in synthetic resin with stainless steel wire gauze.
* Self-priming blade rotary volumetric pump.
* Centrifugal air separator composed of two concentric pipes, the internal one allows gases separated from the liquid part to be collected.
* By pass valve equipped with a device for limiting and regulating pump delivery pressure.
* Air separator drainage reflux chamber equipped with a float valve allowing drainage of the liquid part on reaching a pre-established level, and with a vent for evacuating the air separated from the liquid.
Features
* Reduced number of components
* Easy maintenance
* Reduced dimensions and weight
* No belts or pulleys in motor-pump connection
* Filter flanged to the main body
* Wide filtering surface
* Compliance with OIML Standards
|
Working Pressure |
≤0.3 Mpa |
|
Flow rate |
90-120L/m |
|
Vacuum |
≥0.06Mpa |
|
Motor Power |
0.75KW |
|
Motor Speed |
960rpm |
|
Rated Current |
2.3A |
|
Noise |
≤72dB |
|
Suction Pipe Section |
1-1/2" |
|
Dimension |
360mmx320mmx300mm |
|
Net Weight |
About 15KG |
